High speed Elevator
1、Equipment structure
The reciprocating pallet elevator is mainly composed of the main parts such as the driving device, the lifting platform, the counterweight balance block, the outer frame, and the outer mesh.
The driving device is installed on the upper frame of the elevator, and is mainly composed of a motor frame, a motor and a wire rope hoisting mechanism, etc. The motor is set on the main shaft, and the motor directly drives the drive wheel assembly. The load platform and the counterweight balance block are respectively connected, and when the motor rotates, the chain drives the load platform and the counterweight to move up and down respectively.
The lifting cargo platform is a welded U-shaped frame, and a conveyor can be installed in the middle. It walks along the frame guide rail under the traction of the chain. The main components are: welded frame, guide wheel assembly A, guide wheel assembly B, brake device , broken chain detection device, etc. The broken chain detection device can activate the brake device after the chain breaks to prevent the cargo platform from falling.
The cargo platform conveyor is conveyed by double-chain galvanized rollers, and the guide plates on both sides are made of carbon steel bent and welded to avoid rust after long-term use.
The counterweight is composed of welded frame, counterweight, guide wheel, etc. Each counterweight weighs about 50KG, and can be put in and taken out from the gap on the upper part of the frame. There are 4 sets of guide wheel assemblies at the four corners of the frame, which are used to guide the lifting movement.
The outer frame is composed of uprights and horizontal tension, made of bent carbon steel plate, and the surface is sprayed with plastic.
Except for the entrance and exit, the rest of the outer surface of the hoist is equipped with external mesh for safety protection. The external mesh is welded with mesh and bent angle steel plate, and the surface is sprayed with plastic.
2、Hoist Features

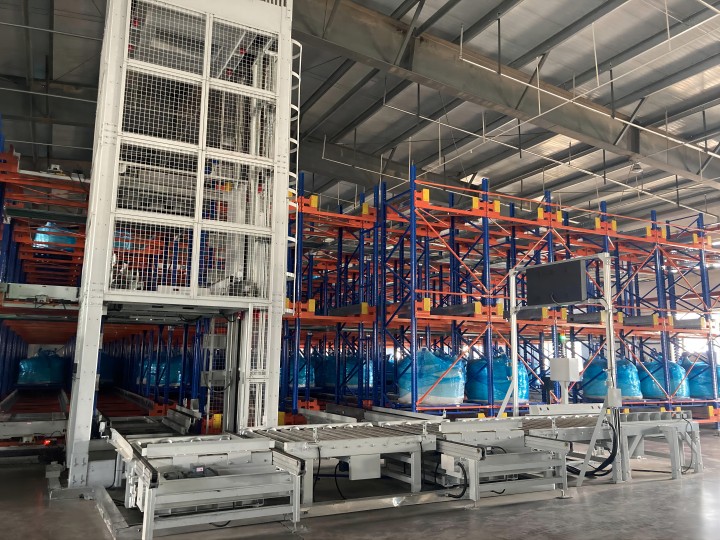

1) The pallets and vertical and horizontal vehicles in the warehouse are turned around through the hoist. The hoist adopts a four-column frame structure and is driven by wire ropes to realize the rise and fall of the loading platform;
2) The main positioning of the hoist adopts bar code positioning, and it can be mechanically locked when it reaches the corresponding position to ensure the position accuracy;
3 ) There are safety protection devices on the upper and lower sides of the hoist;
4 ) The hoist is simultaneously compatible with cargo lifting and vertical and horizontal car layer changing functions;
5 ) The hoist picks up and unloads the goods through the fork mechanism of the loading platform;
6 ) The top and bottom take up less space, which greatly utilizes the warehouse space.

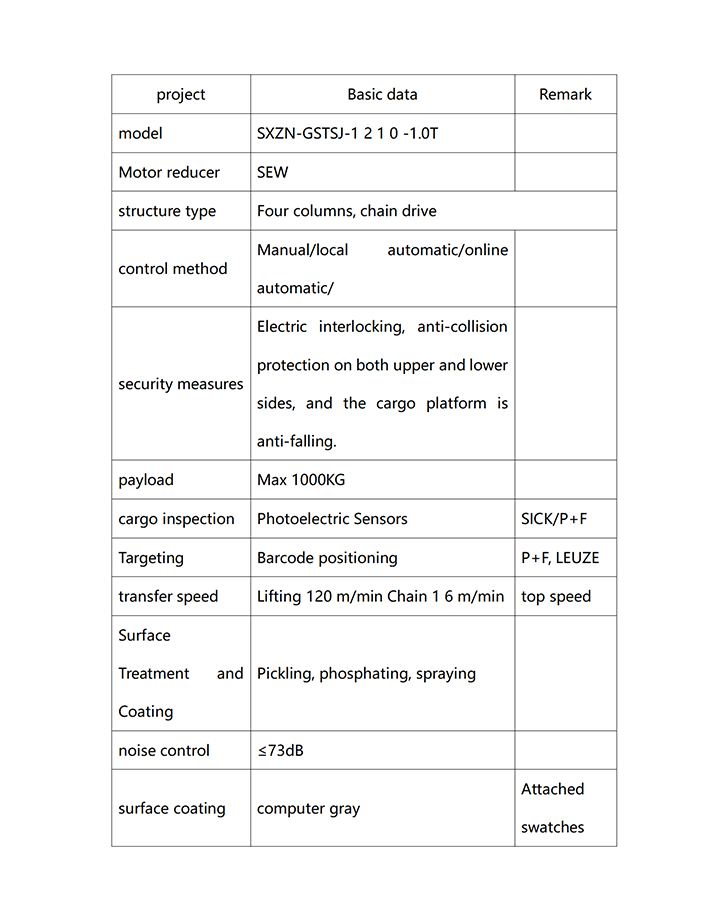

3、Hoist parameters
